Design 2
Project 1
Form & Function ARC257
This project examines the relationship of form and function in architectural design by creating an opening in a bridge, allowing water traffic to pass through while still providing the functionality.
Bridge Span: 190'
Bridge Width: 12'
Depth Below Grade: 10'
Opening Width: 30'
Opening Height: 40'
Work
Bridge Architypes, Historic Examples & Transformations

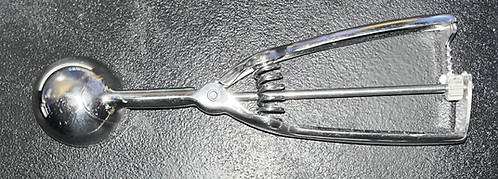

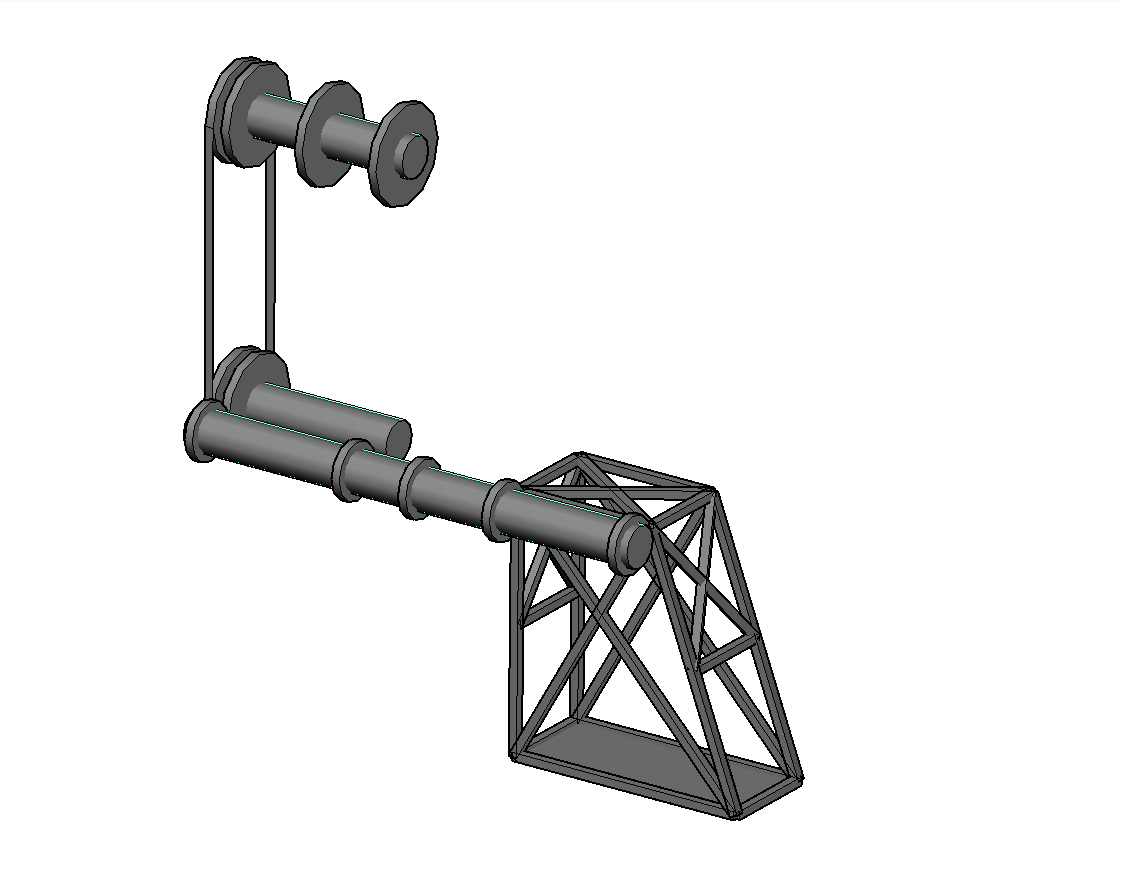

Movement Analogies, 3d Models, Movement Diagrams
3x3 Conceptual Table

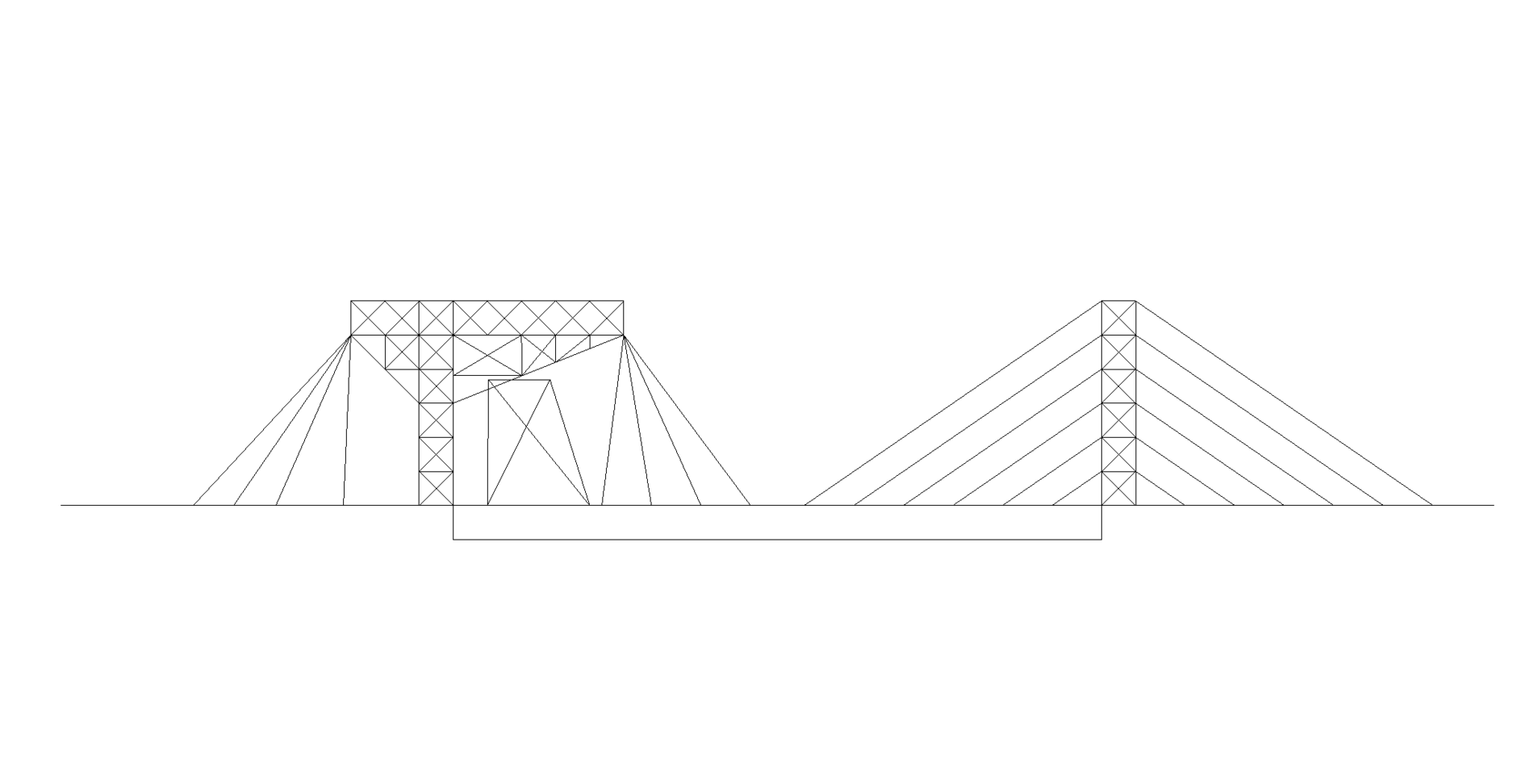

3D Bridge Transformation

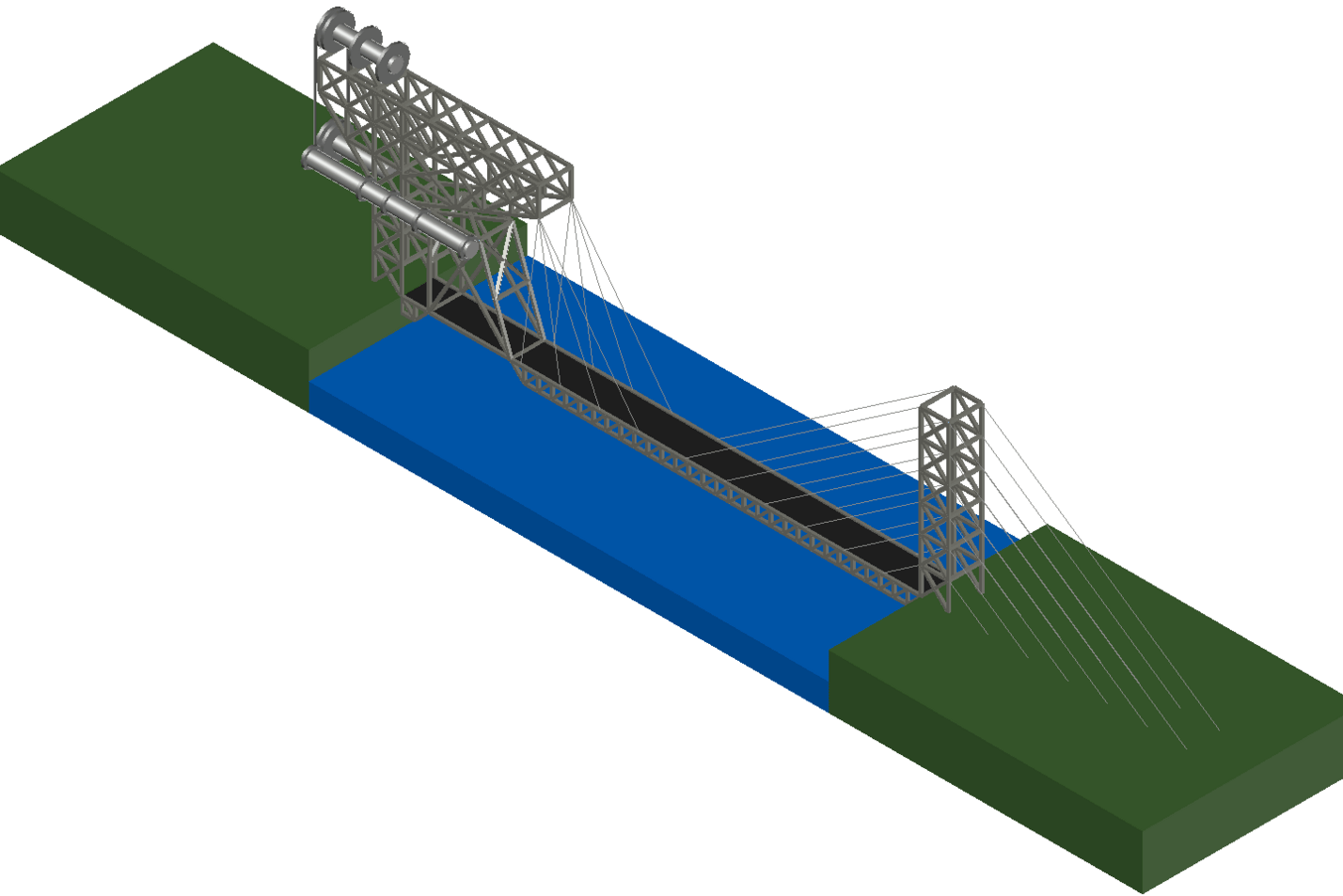

Isometric Views of Full Transformation
Final Solution
