The goal of this project was to add an addition to The Smith House in accordance to a narrative and impose both a new hierarchal space but a meta idea in alliance to the narrative.
Narrative
The Dunn family, the new owners of the infamous smith house, have been surfing for generations. In the warm months and even the more frigid months, they do not let the cold stop them from enjoying their favorite hobby. The whole family is connected by surfing as a pastime and bonding experience. They would like their home to be representative of the activity they enjoy the most, while still keeping it subtle.
Hierarchy Space
Family room, open view of the water side property. [300 square feet]
Master Bedroom [200 square feet]
Master Bathroom [80 square feet]
Exercise Room [180 square feet]
Outdoor Deck [300 square feet]
Meta-Idea
Surf board, in on the ground floor as an outdoor deck.
Original Floor Plans
Pre-Existing Patterns & Systems
Chosen Massing Diagram
Family Room
Exercise Room
Circulation
Master
Bathroom
Master
Bedroom
Model Development
New Floor Plans
Lower Level
Living Room
Kitchen
Bath
Bedroom
Porch
Entry Level
Family Room
Deck
Master
Bath
Master
Bedroom
Bedroom
Closet
Living Room
Bath
Open to
Below
Upper Level
Open to
Below
Deck
Exercise
Room
Bedroom
Bedroom
Bath
Open to
Below
New Floor Plan Analysis
Front Elevation
Right Elevation
Back Elevation
Left Elevation
Sections

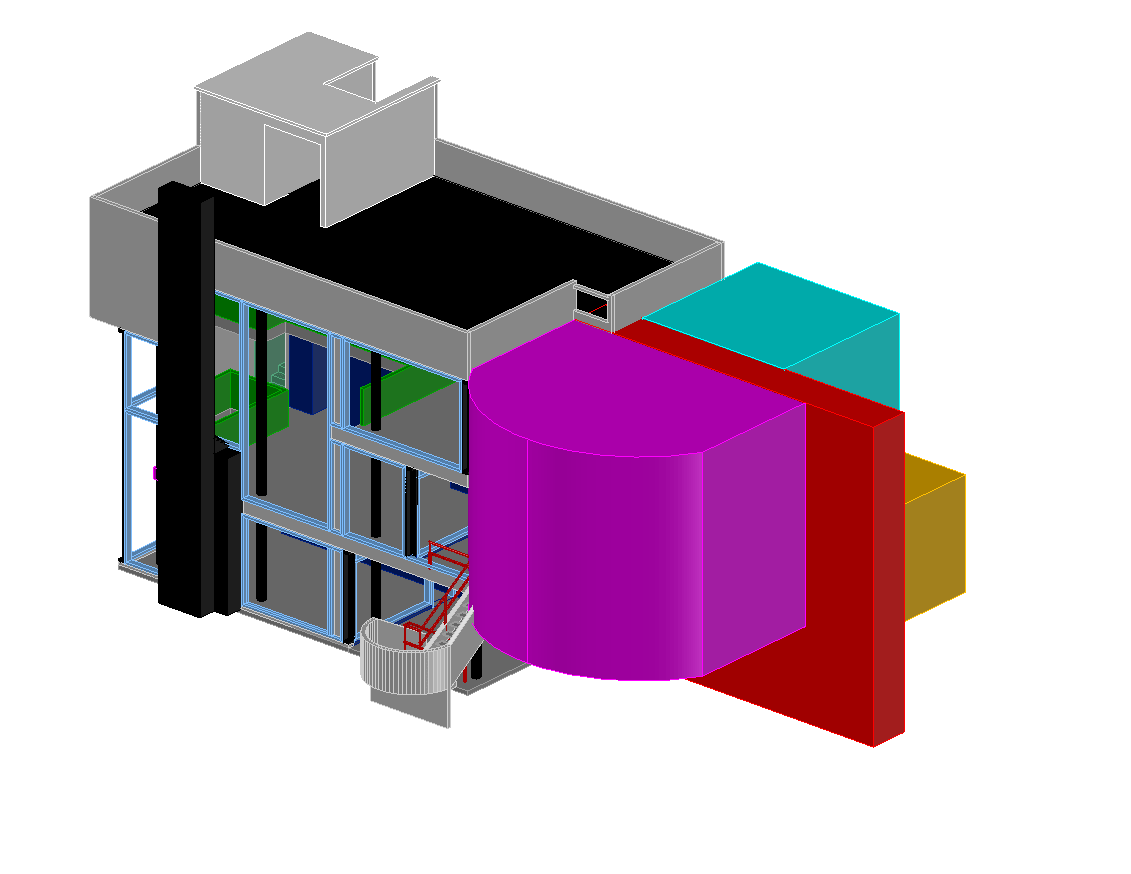

Isometric Renderings

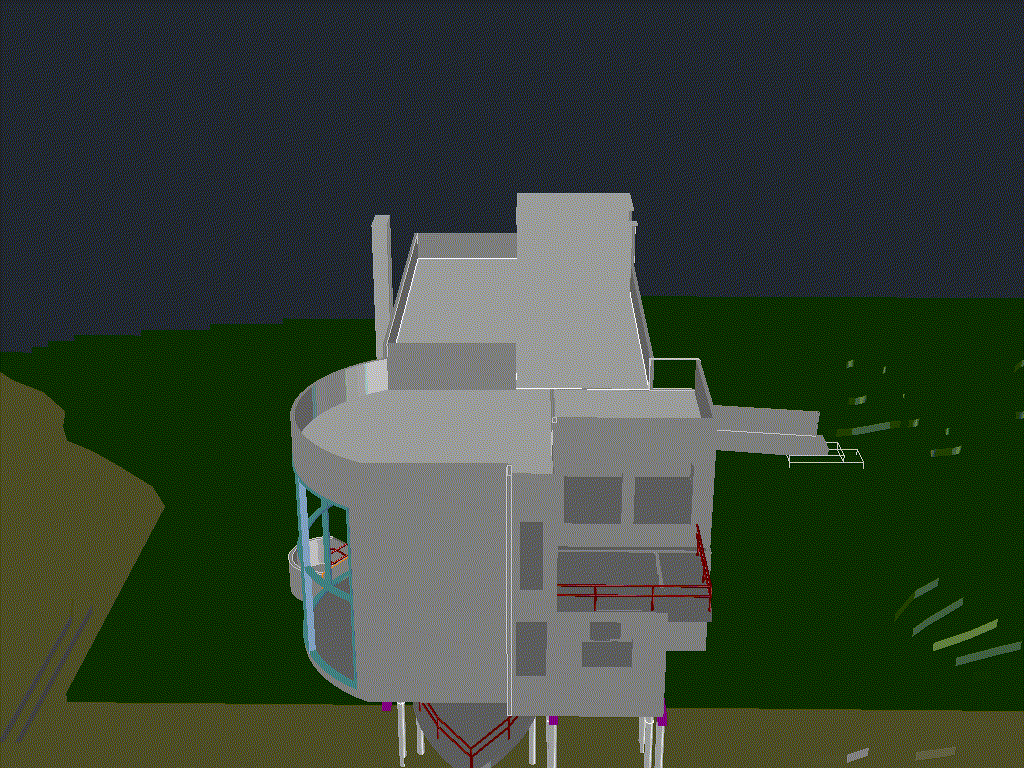

3D Rotation
